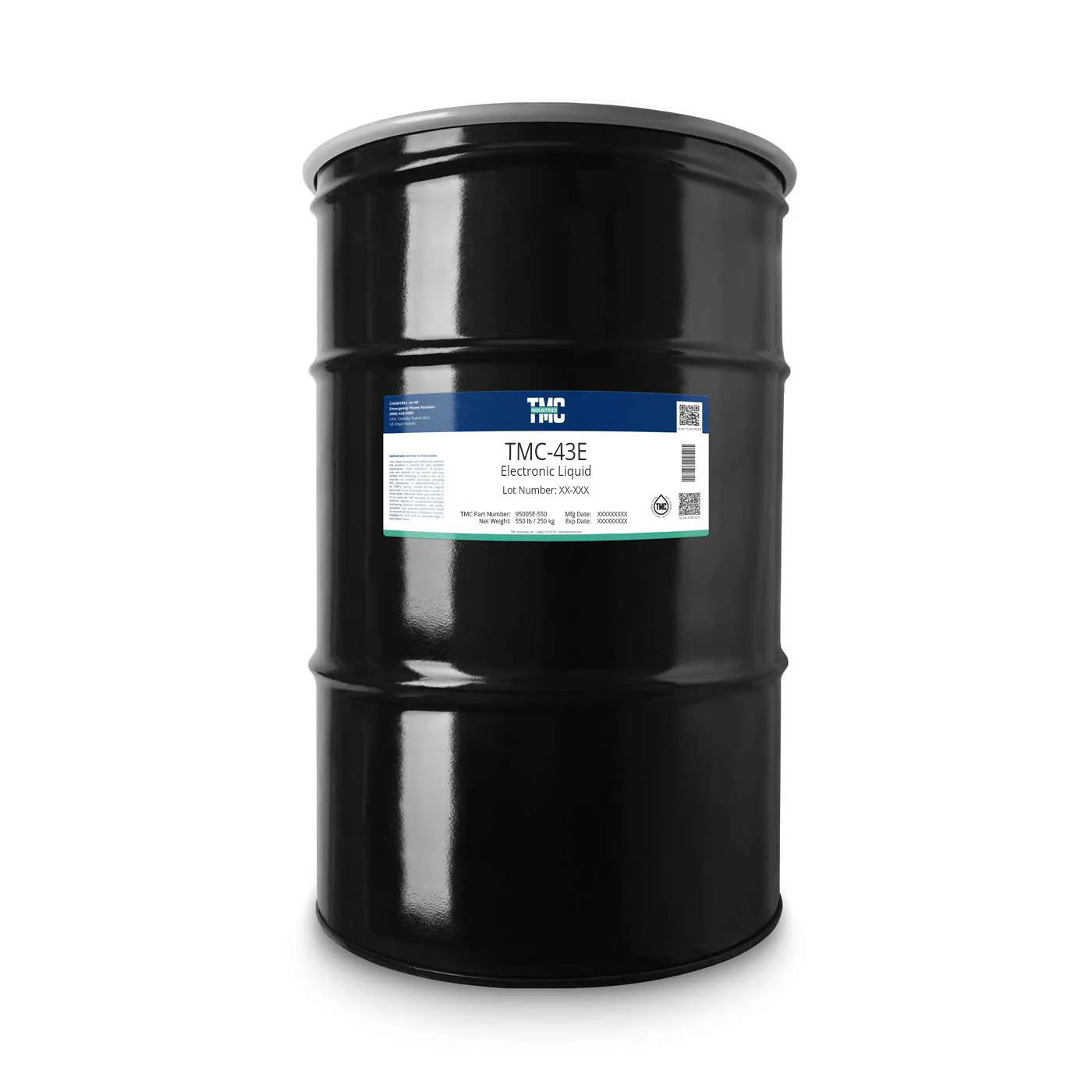

TMC-43E ELECTRONIC LIQUID

TMC-43E is equivalent to 3M FC-43 offering similar chemistry and physical properties.

TMC-43E is a non-conductive, thermally, and chemically stable liquid ideal for many single-phase heat transfer fluid applications, especially in the electronics and semiconductor industry for testers, CVD, and TFT manufacturing. This combination of properties makes this product ideal for many electronic applications, including many electronic quality and reliability tests. Commonly used for burn-in testing, environmental stress screening, and vapor phase soldering.

APPLICATIONS

• Electronic Testing

• Heat Transfer
• Gross Leak Testing
• Thermal Shock Testing
• Semiconductor Cooling



PHYSICAL PROPERTIES COMPARISON

PROPERTY	UNITS	3M™ FC-43	TMC-43E
Type		Virgin	Equivalent
Form		Liquid	Liquid
Color		Colorless	Colorless
Odor		Odorless	Odorless
Boiling Point	°C	174	160
Pour Point	°C	-50	-65
Density	kg/m3	1860	1790
Kinematic Viscosity	cSt	2.5	1.012
Vapor Pressure	psi	0.02	0.04
Specific Heat	J/kg-K	1100	1320
Latent Heat of Vaporization	J/g	69
Coefficient of Thermal Expansion	1/°C	0.0012	0.0018
Thermal Conductivity	W/m-K	0.065	0.52
Dielectric Strength	kV	>40	52.57
Electrical Resistivity	Ohm-cm	4.0 x 10-15	5.0 x 10-9
Average Molecular Weight	g/mol	670
Flash Point		None	None
Ozone Depletion Potential (ODP)		0	0
Global Warming Potential (GWP)		>5000	1



PERFORMANCE

Temperature (℃)	Kinematic Viscosity (mm²/s)
-40	2.85
-20	2.532
0	2.32
25	1.77
45	1.012
65	0.516
90	0.293
110	0.203
120	0.161
140	0.122

MATERIAL COMPATABILITY

Metals & Plastics.



SHELF LIFE & STORAGE

Shelf life is 60 months from the date of manufacture when stored in the original packaging materials and stored under normal conditions.  TMC will re-certify material every 5 years up to 20 years.



DISPOSAL AND RECYCLING

This fluid can be recycled and reused.  Help protect the environment, and don't pay for expensive disposal services.  TMC Industries can reclaim your used fluorinated fluids, restoring them to like-new condition, and save you up to 50% in replacement fluids while protecting the environment, or TMC will recycle your fluid free of charge (conditions apply).

TMC Reclaimed Fluids are tested to meet new product specifications.  It will be clear and odorless, and a Certificate of Analysis is issued with every order.

TMC Industries offers a 100% satisfaction guarantee on all of our reclaimed fluids.  We back this up with a no questions asked refund policy.  To learn more, click HERE.
